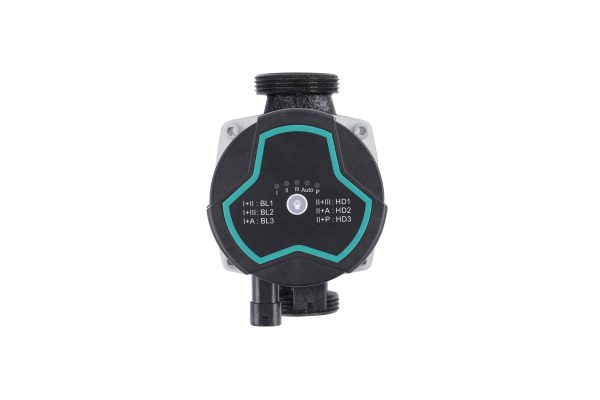

Bastion High Efficiency Pump
| BastionPump ZL-3002-25/6-***/SCU-6 | |
| BastionPump | High Efficiency pump for heating application |
| – | Inline cast iron pump housing |
| 3002 | Code of the pump |
| 25 | Threaded connection DN25(G1 1/2″) |
| 6 | 6=delivery head in [m] at Q=0 m³/h |
| 130 | Pump housing length 130mm (180mm also available) |
| SCU | The pump is controlled by Push button technology |
Description

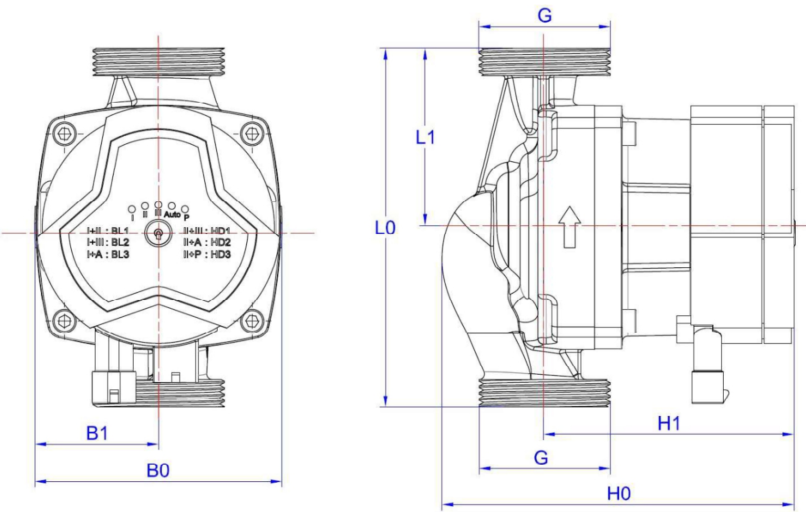

| Designation | Thread G | L0 | L1 | H0 | H1 | B0 | B1 | Weight |
| ZL-3002-25/6-130/SCU | G1 1/2″ | 130 | 65 | 127 | 90 | 90 | 45 | 2.3kg |
| ZL-3002-25/6-180/SCU | G1 1/2″ | 180 | 90 | 127 | 90 | 90 | 45 | 2.5kg |
