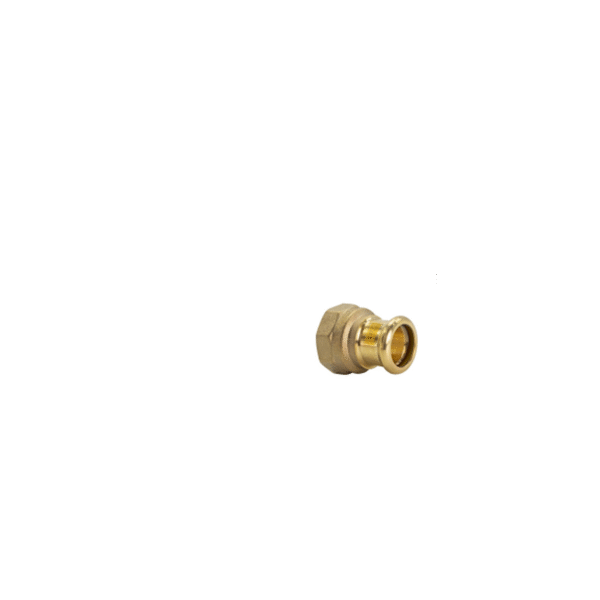

Female Couping

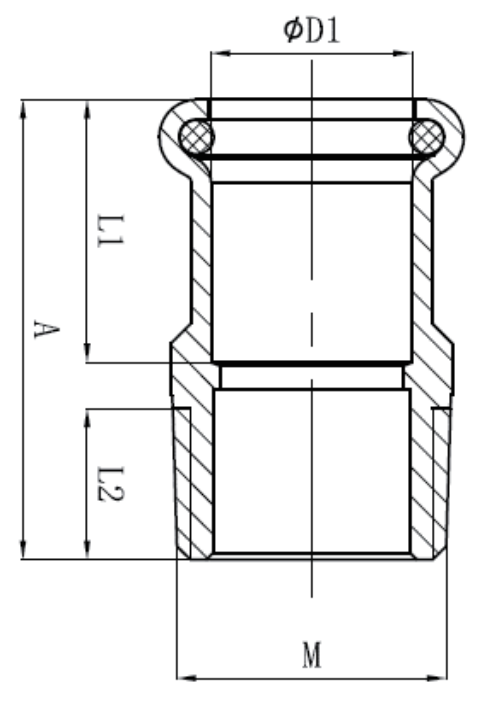

CODE SIZE D1 L1 L2 A M
GKM117-S1512M 15×1/2mm 15 20 11.5 35 R1/2
GKM117-S1534M 15×3/4mm 15 20 13 41 R3/4
GKM117-S2212M 22×1/2mm 22 19 11.5 41.5 R1/2
GKM117-S2234M 22×3/4mm 22 21 13 42 R3/4
GKM117-S2211M 22x1mm 22 21 14.5 46.5 R1
GKM117-S2834M 28×3/4mm 28 23 13 49 R3/4
GKM117-S2811M 28x1mm 28 23 14.5 48 R1
GKM117-S3511M 35x1mm 35 26 14.5 56.6 R1
GKM117-S35114M 35×1-1/4mm 35 26 17 53 R1-1/4
GKM117-S42112M 42×1-1/2mm 42 30 19 58 R1-1/2
GKM117-S5421M 54x2mm 54 35 23 62.7 R2



Contact

Description

CODESIZED1L1L2AM
GKM117-S1512M15×1/2mm152011.535R1/2
GKM117-S1534M15×3/4mm15201341R3/4
GKM117-S2212M22×1/2mm221911.541.5R1/2
GKM117-S2234M22×3/4mm22211342R3/4
GKM117-S2211M22x1mm222114.546.5R1
GKM117-S2834M28×3/4mm28231349R3/4
GKM117-S2811M28x1mm282314.548R1
GKM117-S3511M35x1mm352614.556.6R1
GKM117-S35114M35×1-1/4mm35261753R1-1/4
GKM117-S42112M42×1-1/2mm42301958R1-1/2
GKM117-S5421M54x2mm54352362.7R2

Setup Video



Attachments

File Description File size
M Profile Copper press Fitting For water and Gas 2 MB
