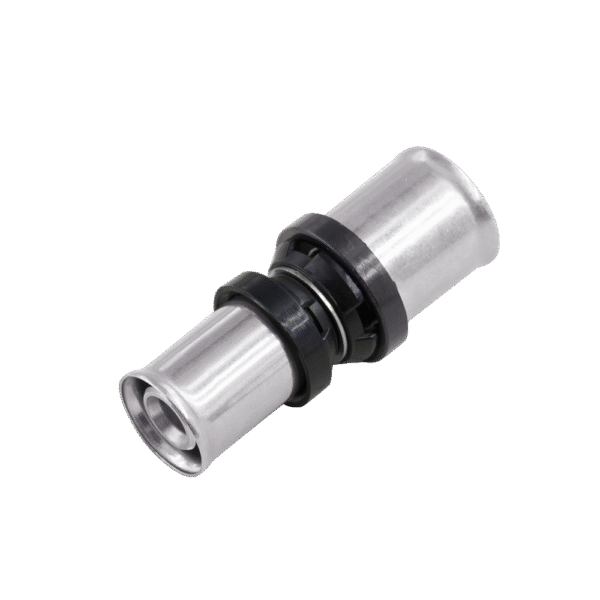

Unequal Straight Union

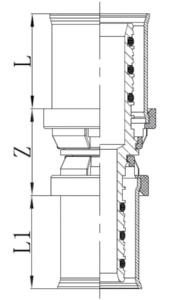

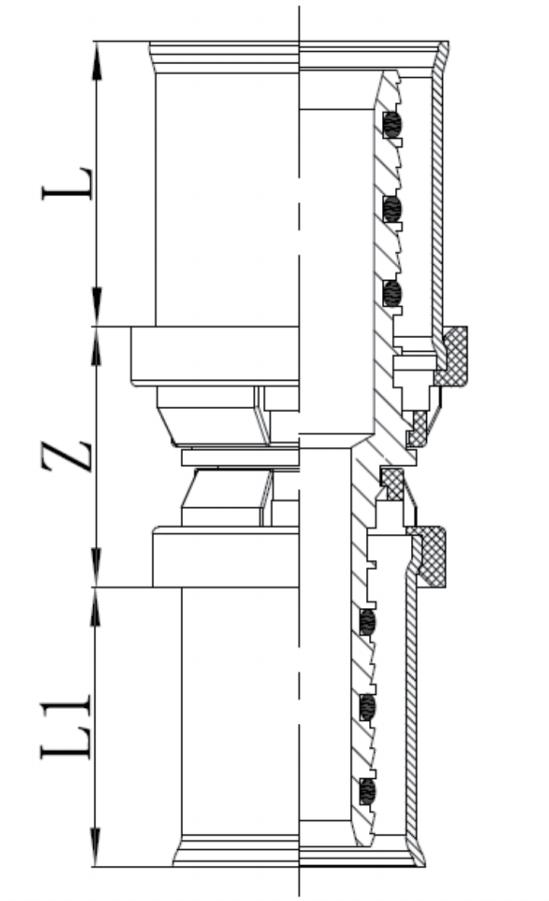

TYPE	Profile	L	Z L1
20X16	U TH	21 . 9	20 21 . 5
25X16	U TH	27 . 5	19 . 8 21 . 5
25X20	U TH	27 . 5	20 21 . 9
32X16	U TH	27 . 5	19 . 8 21 . 5
32X20	U TH	27 . 5	20 21 . 9
32X25	U TH	27 . 5	19 . 8 27 . 5

Description

TYPE	Profile	L	Z L1
20X16	U TH	21 . 9	20 21 . 5
25X16	U TH	27 . 5	19 . 8 21 . 5
25X20	U TH	27 . 5	20 21 . 9
32X16	U TH	27 . 5	19 . 8 21 . 5
32X20	U TH	27 . 5	20 21 . 9
32X25	U TH	27 . 5	19 . 8 27 . 5
