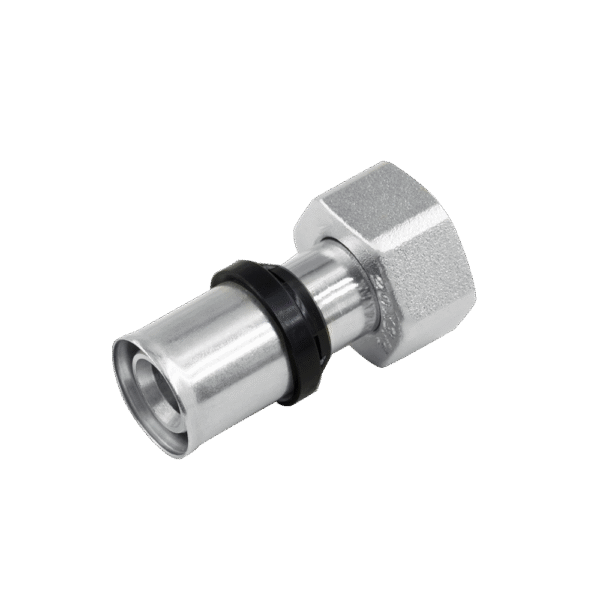

Swivel Couple

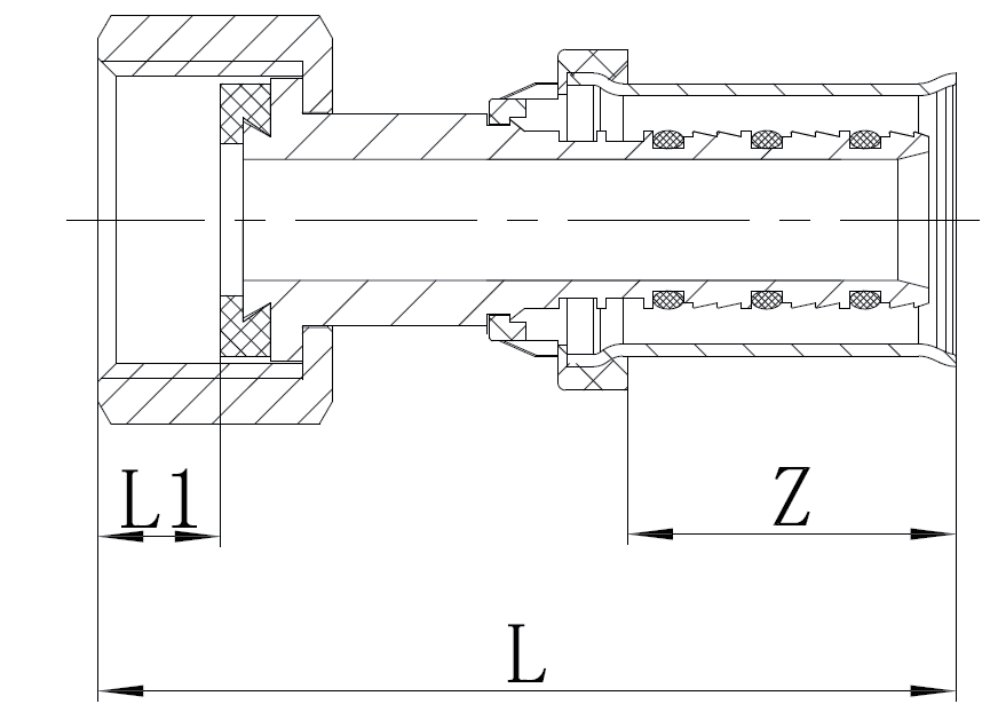

TYPE	Profile	L	Z L1
16X1/2F	U TH	56 . 7	21 . 7 8 . 1
20X1/2F	U TH	58 . 6	22 . 3 7 . 7
20X3/4F	U TH	58 . 6	22 . 3 8
25X3/4F	U TH	63 . 4	27 . 5 8 . 3
25X1F	U TH	64 . 9	27 . 5 9 . 3

Description

TYPE	Profile	L	Z L1
16X1/2F	U TH	56 . 7	21 . 7 8 . 1
20X1/2F	U TH	58 . 6	22 . 3 7 . 7
20X3/4F	U TH	58 . 6	22 . 3 8
25X3/4F	U TH	63 . 4	27 . 5 8 . 3
25X1F	U TH	64 . 9	27 . 5 9 . 3

Attachments

File	Description	File size
MLCP Press FittingDatasheet		3 MB
