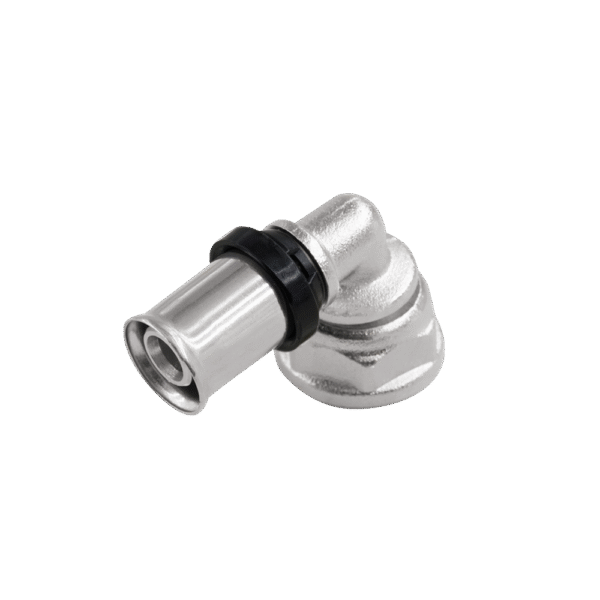

Swivel Elbow

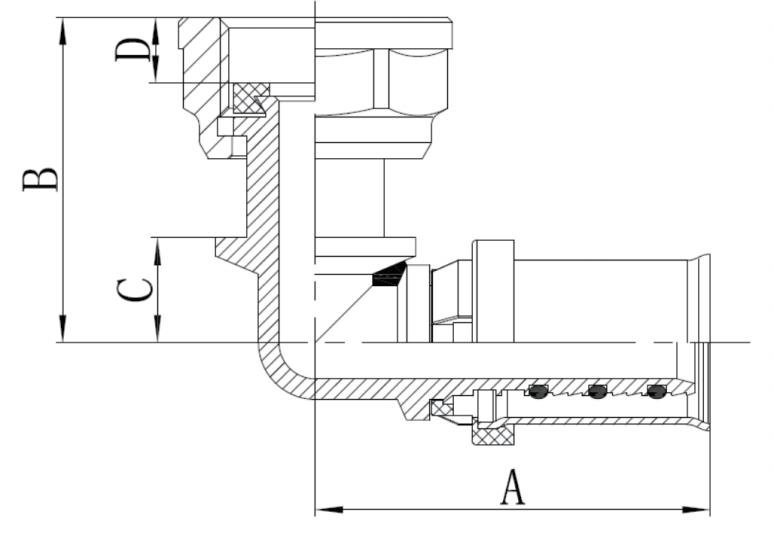

TYPE	Profile	A	B	C	D
16X1/2F	U TH	43 3	35 . 7	1 1 . 5	7 . 2
20X3/4F	U TH	53	38 . 7	14 . 5	7 . 6

Description

TYPE	Profile	A	B	C	D
16X1/2F	U TH	43 3	35 . 7	1 1 . 5	7 . 2
20X3/4F	U TH	53	38 . 7	14 . 5	7 . 6

Attachments

File	Description	File size
MLCP Press FittingDatasheet		3 MB
