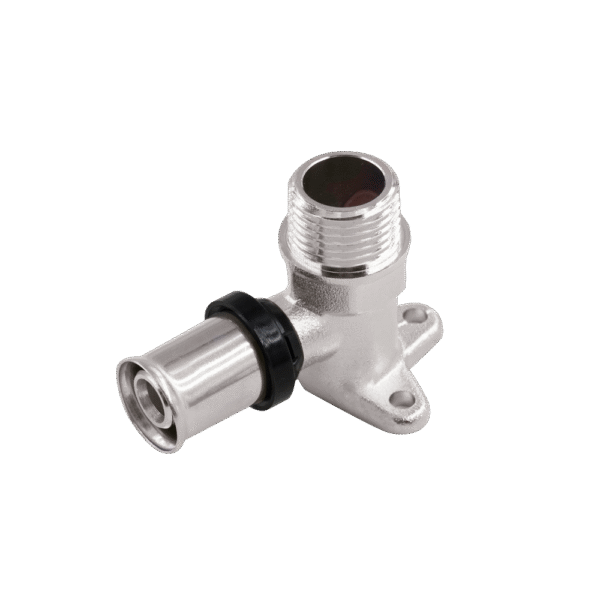

Elbow with Plate-Male

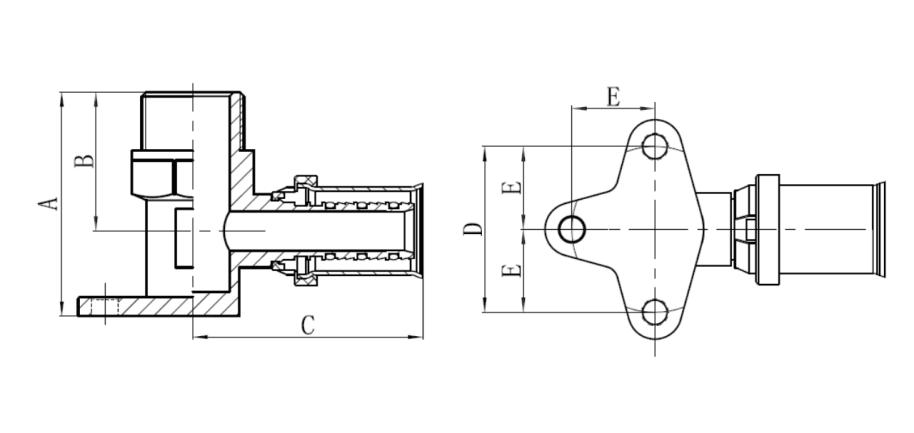

TYPE	Profile	A	B	C	D	E
16X1/2M	U TH	46	28 . 5	47 . 1	34	17
16X3/4M	U TH	48	28	48 . 1	40	20
20X3/4M	U TH	52	33 . 5	50 . 4	40	20

Description

TYPE	Profile	A	B	C	D	E
16X1/2M	U TH	46	28 . 5	47 . 1	34	17
16X3/4M	U TH	48	28	48 . 1	40	20
20X3/4M	U TH	52	33 . 5	50 . 4	40	20

Attachments

File	Description	File size
MLCP Press FittingDatasheet		3 MB
