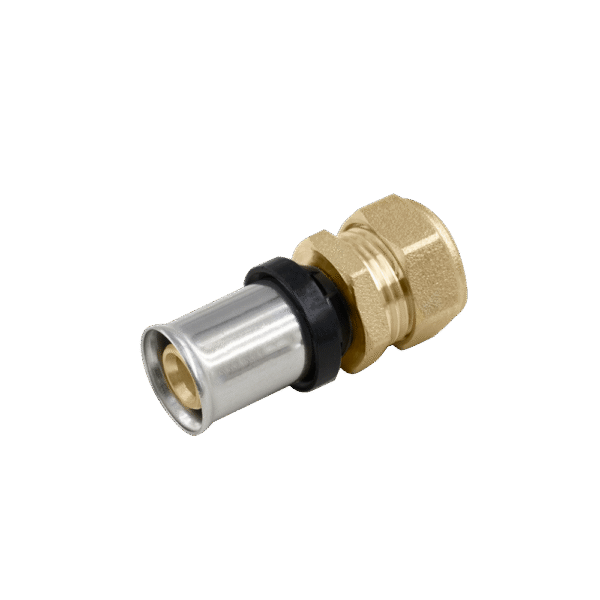

Straight Union With Compression

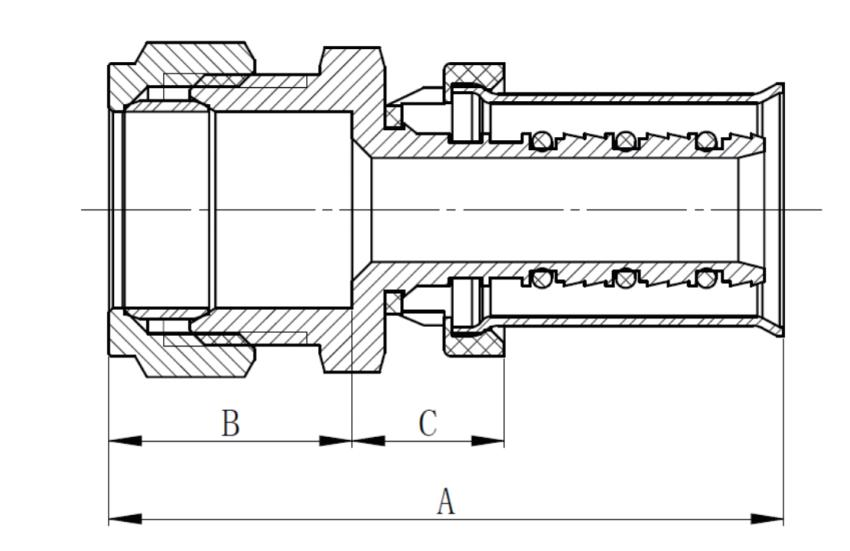

TYPE	Profile	A	B	C
16X15	U TH	51 . 9	18 . 7	1 1 . 7
20X15	U TH	52 . 5	18 . 7	1 1 . 7
20X22	U TH	54 . 3	20 . 5	1 1 . 7
25X22	U TH	59 . 5	20 . 5	l 1 . 5
25X28	U TH	61 . 5	22 . 5	l 1 . 5
32X28	U TH	61 . 5	22 . 5	l 1 . 5

Description

TYPE	Profile	A	B	C
16X15	U TH	51 . 9	18 . 7	1 1 . 7
20X15	U TH	52 . 5	18 . 7	1 1 . 7
20X22	U TH	54 . 3	20 . 5	1 1 . 7
25X22	U TH	59 . 5	20 . 5	l 1 . 5
25X28	U TH	61 . 5	22 . 5	l 1 . 5
32X28	U TH	61 . 5	22 . 5	l 1 . 5

Attachments

File	Description	File size
MLCP Press FittingDatasheet		3 MB
