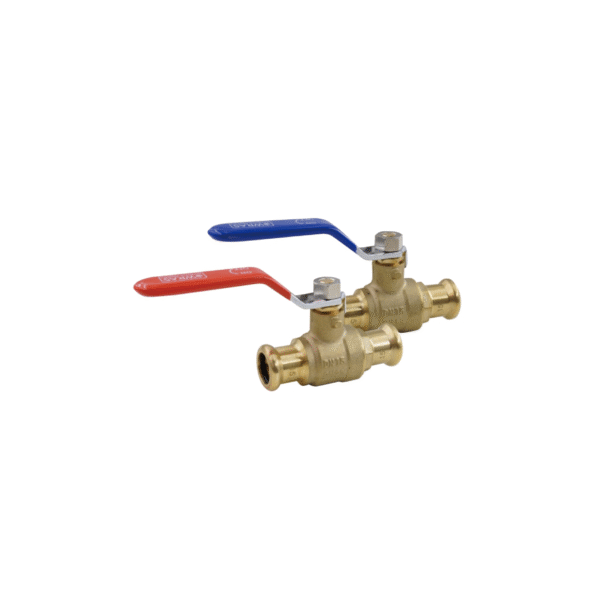

Full-bore Ball Valve with Lever Handle

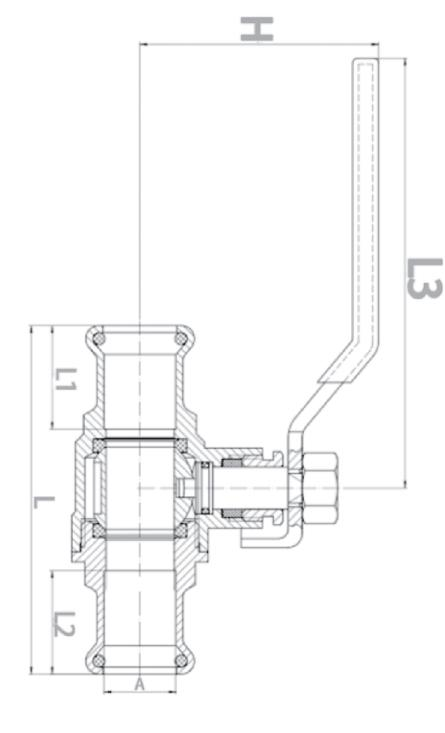

CODE SIZE L1 L2 L3	L	H
ZL-4198-1515R 15x15mm 22 22 91	74	51
ZL-4198-2222R 22x22mm 21 21 91	82	55
ZL-4198-2828R 28x28mm 27 27 100	105	63
ZL-4198-3535R 35x35mm 26 26 130	110	73
ZL-4198-4242R 42x42mm 34 34 130	134.5	79
ZL-4198-5454R 54x54mm 35 35 156.5	149.5	94.5
ZL-4198-1515B 15x15mm 22 22 91	74	51
ZL-4198-2222B 22x22mm 21 21 91	82	55
ZL-4198-2828B 28x28mm 27 27 100	105	63
ZL-4198-3535B 35x35mm 26 26 130	110	73
ZL-4198-4242B 42x42mm 34 34 130	134.5	79
ZL-4198-5454B 54x54mm 35 35 156.5	149.5	94.5

Description

CODE SIZE L1 L2 L3	L	H
ZL-4198-1515R 15x15mm 22 22 91	74	51
ZL-4198-2222R 22x22mm 21 21 91	82	55
ZL-4198-2828R 28x28mm 27 27 100	105	63
ZL-4198-3535R 35x35mm 26 26 130	110	73
ZL-4198-4242R 42x42mm 34 34 130	134.5	79
ZL-4198-5454R 54x54mm 35 35 156.5	149.5	94.5
ZL-4198-1515B 15x15mm 22 22 91	74	51
ZL-4198-2222B 22x22mm 21 21 91	82	55
ZL-4198-2828B 28x28mm 27 27 100	105	63
ZL-4198-3535B 35x35mm 26 26 130	110	73
ZL-4198-4242B 42x42mm 34 34 130	134.5	79
ZL-4198-5454B 54x54mm 35 35 156.5	149.5	94.5

Setup Video

Attachments

File	Description	File size
M ProfileCooper Press FittingFor Water and Gas		2 MB
