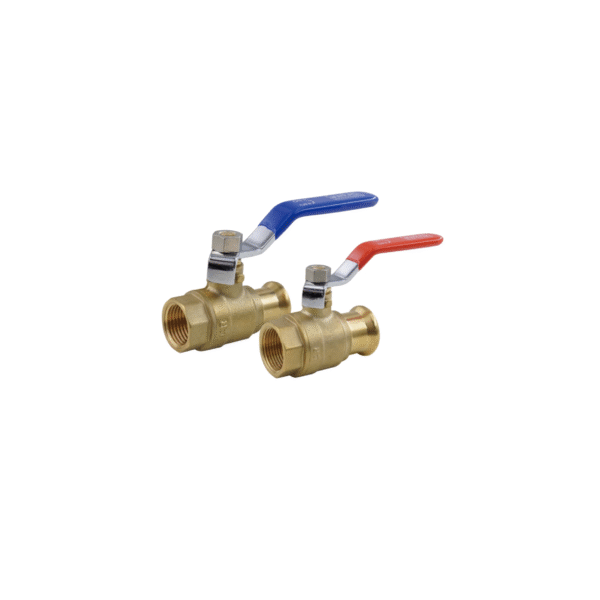

Full-bore Ball Valve with Female Connection

Full-bore Ball Valve with Female Connection

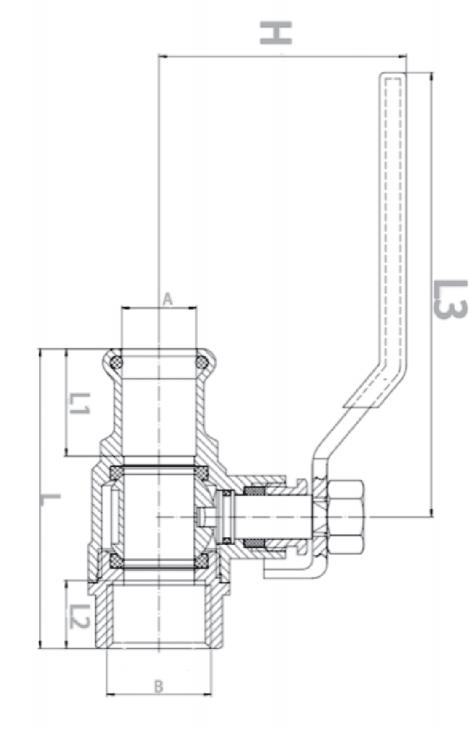

CODE SIZE A B L1 L2 L3 L H
ZL-4199-1512FR 15×1/2F 15 G1/2 22 14 91 61.5 51
ZL-4199-2234FR 22×3/4F 22 G3/4 21 14 91 67 54.5
ZL-4199-2811FR 28x1F 28 G1 27 15 100 83 62.5
ZL-4199-35114FR 35×1-1/4F 35 G1-1/4 26 16 130 92 72.5
ZL-4199-42112FR 42×1-1/4F 42 G1-1/2 34 16 130 109.5 79
ZL-4199-5421FR 54x2F 54 G2 35 18 157 122 94.5
ZL-4199-1512FB 15×1/2F 15 G1/2 22 14 91 61.5 51
ZL-4199-2234FB 22×3/4F 22 G3/4 21 14 91 67 54.5
ZL-4199-2811FB 28x1F 28 G1 27 15 100 83 62.5
ZL-4199-35114FB 35×1-1/4F 35 G1-1/4 26 16 130 92 72.5
ZL-4199-42112FB 42×1-1/2F 42 G1-1/2 34 16 130 109.5 79
ZL-4199-5421FB 54x2F 54 G2 35 18 157 122 94.5
Contact
Download

Description

CODE SIZE A B L1 L2 L3 L H
ZL-4199-1512FR 15×1/2F 15 G1/2 22 14 91 61.5 51
ZL-4199-2234FR 22×3/4F 22 G3/4 21 14 91 67 54.5
ZL-4199-2811FR 28x1F 28 G1 27 15 100 83 62.5
ZL-4199-35114FR 35×1-1/4F 35 G1-1/4 26 16 130 92 72.5
ZL-4199-42112FR 42×1-1/4F 42 G1-1/2 34 16 130 109.5 79
ZL-4199-5421FR 54x2F 54 G2 35 18 157 122 94.5
ZL-4199-1512FB 15×1/2F 15 G1/2 22 14 91 61.5 51
ZL-4199-2234FB 22×3/4F 22 G3/4 21 14 91 67 54.5
ZL-4199-2811FB 28x1F 28 G1 27 15 100 83 62.5
ZL-4199-35114FB 35×1-1/4F 35 G1-1/4 26 16 130 92 72.5
ZL-4199-42112FB 42×1-1/2F 42 G1-1/2 34 16 130 109.5 79
ZL-4199-5421FB 54x2F 54 G2 35 18 157 122 94.5





Attachments

File Description File size
M Profile Copper press Fitting For water and Gas 2 MB
