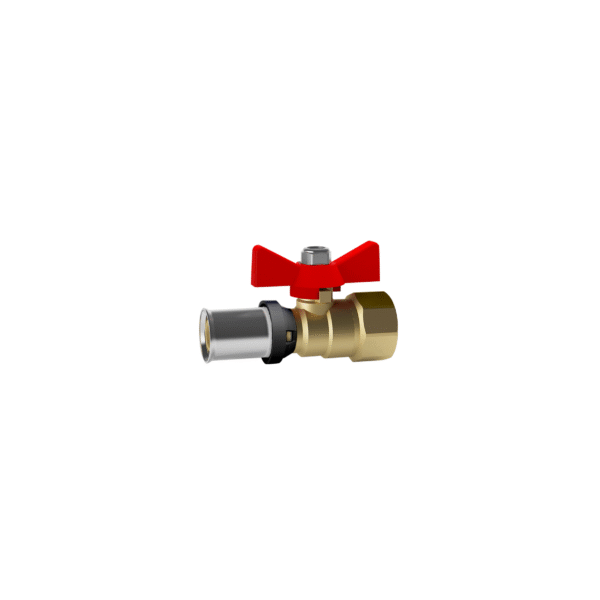

Press Female Ball Valve Butterfly Handle

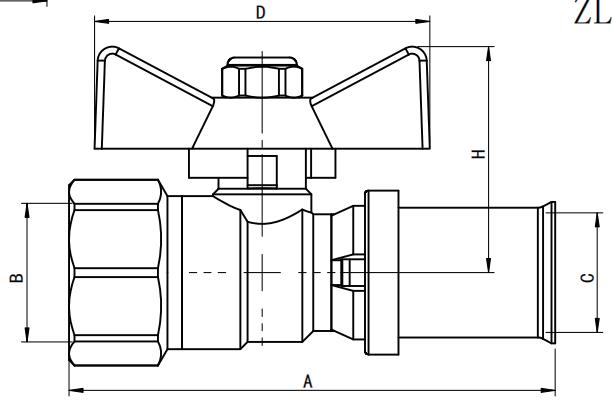

TYPE	Profile	A	B	C	D	H
16X2/1	U TH	66.7	G1/2	16×2.0	46	31
20X3/4	U TH	71.6	G3/4	20×2.0	51	36.5
25X1	U TH	85.5	G1	25×2.5	51	40.5
32X11/4	U TH	94	G11/4	32×3.0	72.5	47.3

Description

TYPE	Profile	A	B	C	D	H
16X2/1	U TH	66.7	G1/2	16×2.0	46	31
20X3/4	U TH	71.6	G3/4	20×2.0	51	36.5
25X1	U TH	85.5	G1	25×2.5	51	40.5
32X11/4	U TH	94	G11/4	32×3.0	72.5	47.3

Attachments

File	Description	File size
MLCP Press FittingDatasheet		3 MB
