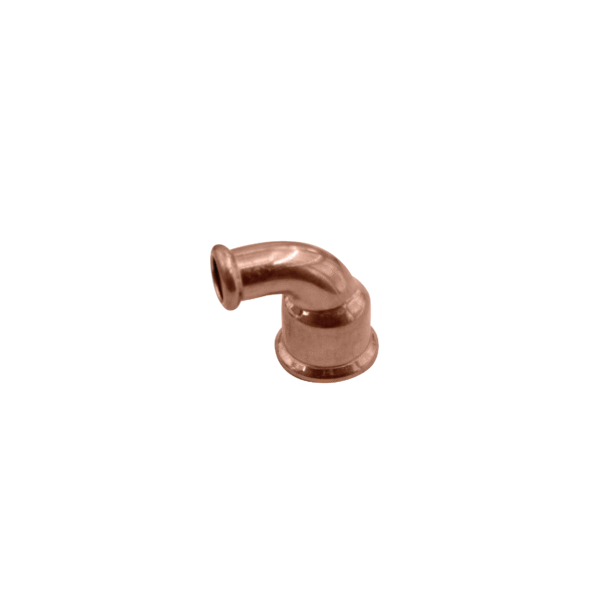

Elbow Reducer

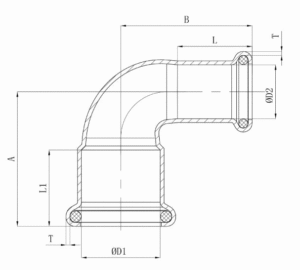

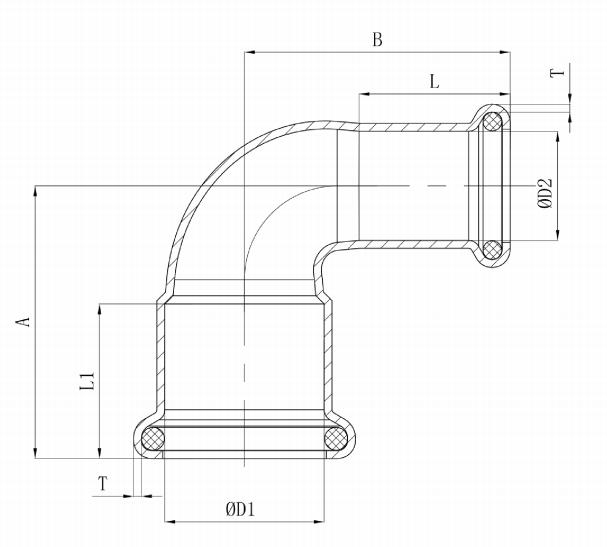

CODE	SIZE	D1	D2	L1	L2	A	B
ZL-KM103-L2215	22x15mm	22	15	21	20	38	37
ZL-KM103-L2815	28x15mm	28	15	23	20	43	37
ZL-KM103-L2822	28x22mm	28	22	23	21	40	36

Description

CODE	SIZE	D1	D2	L1	L2	A	B
ZL-KM103-L2215	22x15mm	22	15	21	20	38	37
ZL-KM103-L2815	28x15mm	28	15	23	20	43	37
ZL-KM103-L2822	28x22mm	28	22	23	21	40	36

Attachments

File	Description	File size
M Profile Copper press Fitting For water and Gas		2 MB
