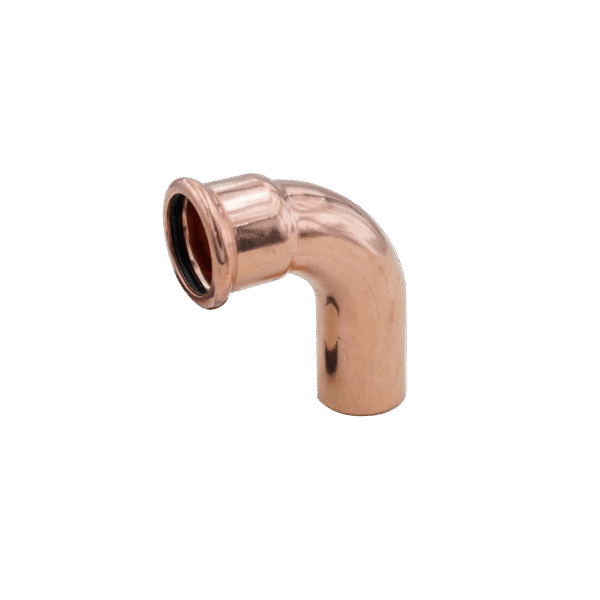

90° Street Elbow

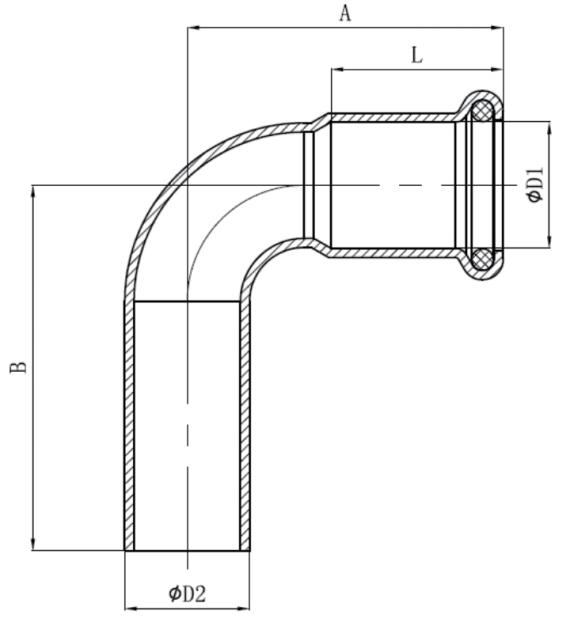

CODE	SIZE	D1	D2	L	A	B
ZL-KM104-L1515	15x15mm	15	15	20	38	44
ZL-KM104-L2222	22x22mm	22	22	21	47.5	58
ZL-KM104-L2828	28x28mm	28	28	23	56.5	65
ZL-KM104-L3535	35x35mm	35	35	26	68	82
ZL-KM104-L4242	42x42mm	42	42	30	80	103
ZL-KM104-L5454	54x54mm	54	54	35	100	123

Description

CODE	SIZE	D1	D2	L	A	B
ZL-KM104-L1515	15x15mm	15	15	20	38	44
ZL-KM104-L2222	22x22mm	22	22	21	47.5	58
ZL-KM104-L2828	28x28mm	28	28	23	56.5	65
ZL-KM104-L3535	35x35mm	35	35	26	68	82
ZL-KM104-L4242	42x42mm	42	42	30	80	103
ZL-KM104-L5454	54x54mm	54	54	35	100	123

Setup Video

Attachments

File	Description	File size
M ProfileCooper Press FittingFor Water and Gas		2 MB
