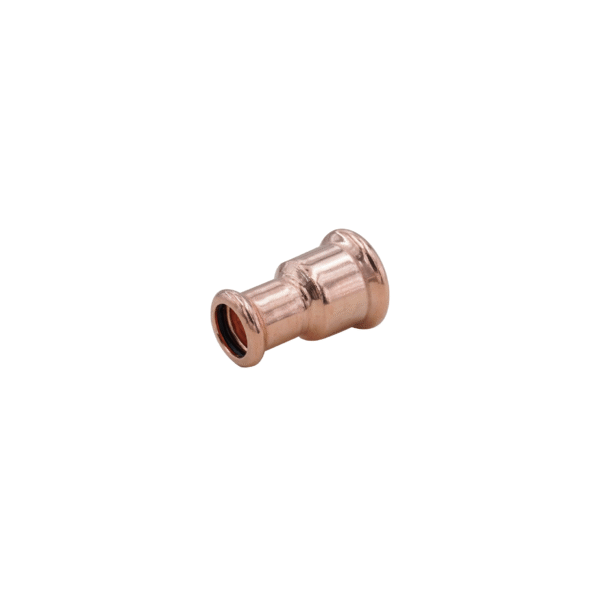

Reducing Coupling

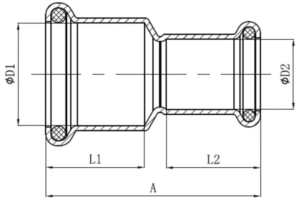

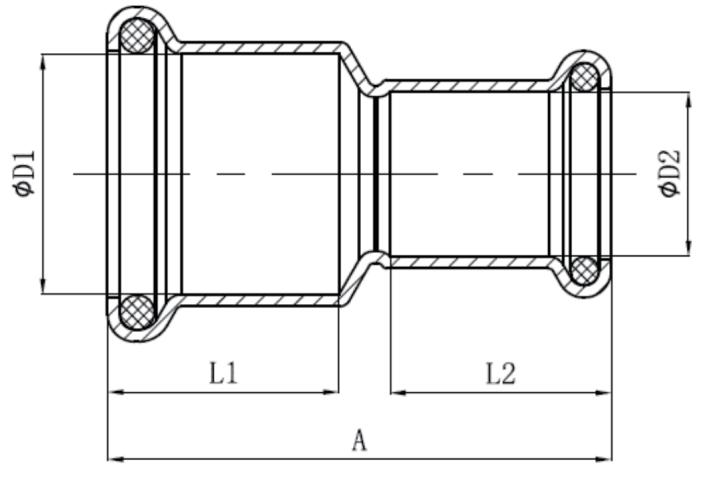

| CODE | SIZE | D1 | D2 | L1 | L2 | A |
| ZL-KM107-S2215 | 22x15mm | 22 | 15 | 21 | 20 | 46.5 |
| ZL-KM107-S2815 | 28x15mm | 28 | 15 | 23 | 20 | 53 |
| ZL-KM107-S2822 | 28x22mm | 28 | 22 | 23 | 21 | 50.5 |
| ZL-KM107-S3515 | 35x15mm | 35 | 15 | 26 | 20 | 60.5 |
| ZL-KM107-S3522 | 35x22mm | 35 | 22 | 26 | 21 | 57 |
| ZL-KM107-S3528 | 35x28mm | 35 | 28 | 26 | 23 | 56 |
| ZL-KM107-S4222 | 42x22mm | 42 | 22 | 30 | 21 | 65 |
| ZL-KM107-S4228 | 42x28mm | 42 | 28 | 30 | 23 | 63.5 |
| ZL-KM107-S4235 | 42x35mm | 42 | 35 | 30 | 26 | 63 |
| ZL-KM107-S5428 | 54x28mm | 54 | 28 | 35 | 23 | 75.5 |
| ZL-KM107-S5435 | 54x35mm | 54 | 35 | 35 | 26 | 74.5 |
| ZL-KM107-L5442 | 54x42mm | 54 | 42 | 35 | 30 | 75 |
Description
| CODE | SIZE | D1 | D2 | L1 | L2 | A |
| ZL-KM107-S2215 | 22x15mm | 22 | 15 | 21 | 20 | 46.5 |
| ZL-KM107-S2815 | 28x15mm | 28 | 15 | 23 | 20 | 53 |
| ZL-KM107-S2822 | 28x22mm | 28 | 22 | 23 | 21 | 50.5 |
| ZL-KM107-S3515 | 35x15mm | 35 | 15 | 26 | 20 | 60.5 |
| ZL-KM107-S3522 | 35x22mm | 35 | 22 | 26 | 21 | 57 |
| ZL-KM107-S3528 | 35x28mm | 35 | 28 | 26 | 23 | 56 |
| ZL-KM107-S4222 | 42x22mm | 42 | 22 | 30 | 21 | 65 |
| ZL-KM107-S4228 | 42x28mm | 42 | 28 | 30 | 23 | 63.5 |
| ZL-KM107-S4235 | 42x35mm | 42 | 35 | 30 | 26 | 63 |
| ZL-KM107-S5428 | 54x28mm | 54 | 28 | 35 | 23 | 75.5 |
| ZL-KM107-S5435 | 54x35mm | 54 | 35 | 35 | 26 | 74.5 |
| ZL-KM107-L5442 | 54x42mm | 54 | 42 | 35 | 30 | 75 |
