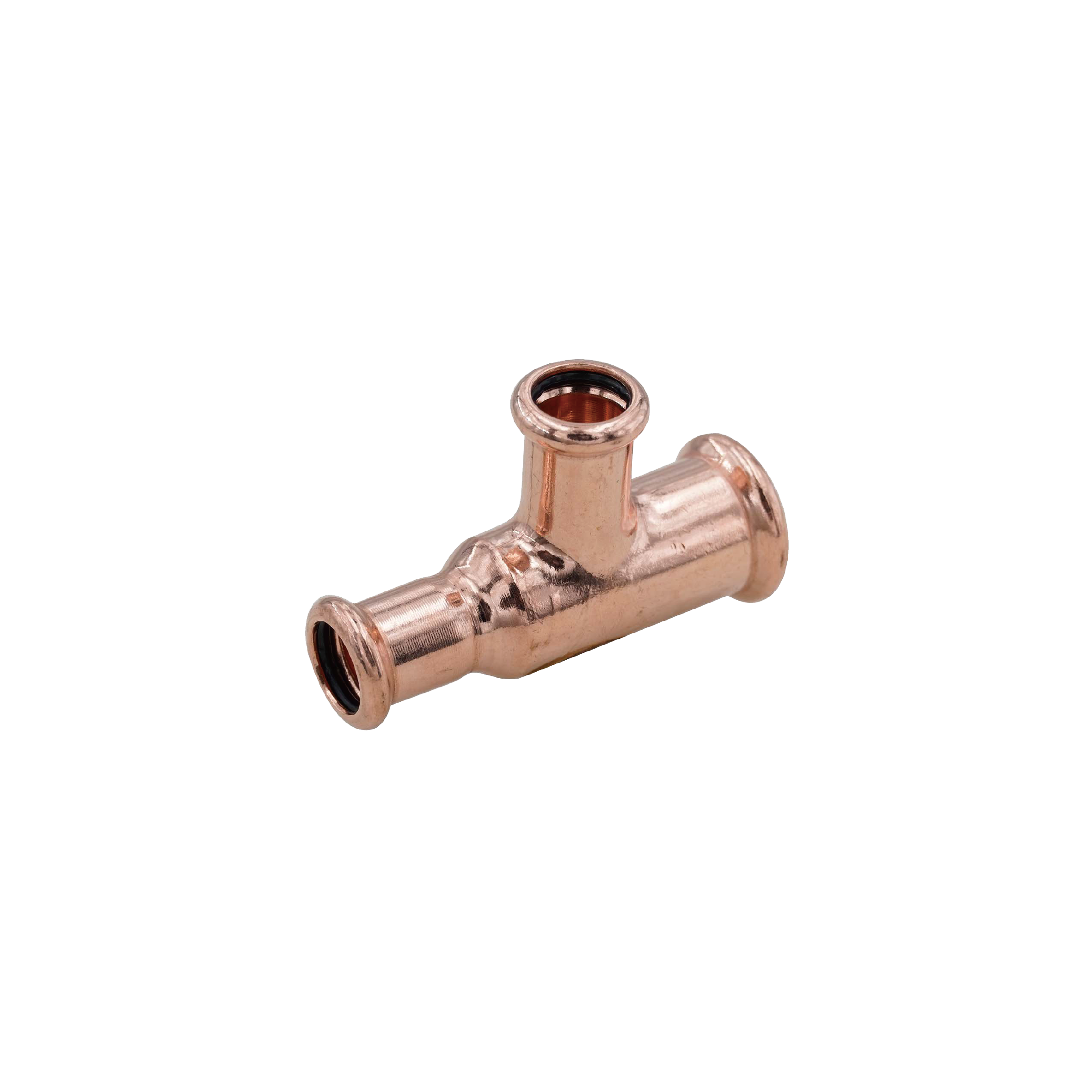

Tee Reduced Branch

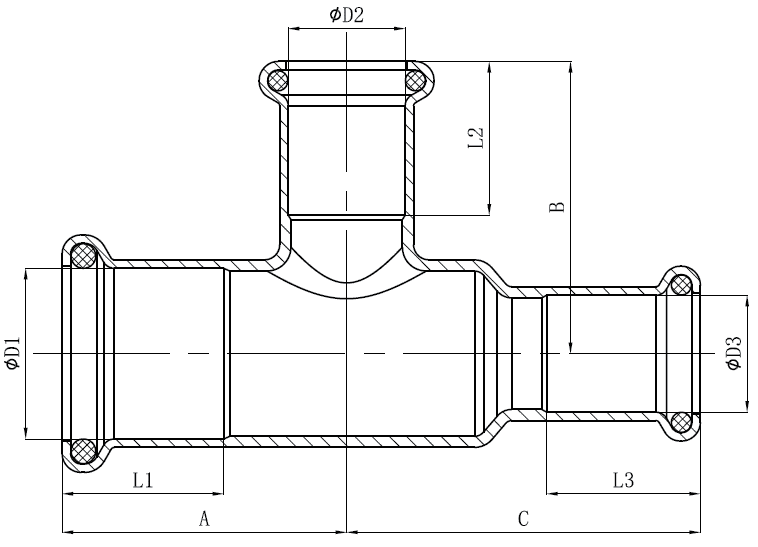

CODE	SIZE	D1	D2 D3	L1	L2	L3	A	B	C
ZL-KM110-T221515	22x15x15	22	15 15	21	20	20	37	38	46
ZL-KM110-T222215	22x22x15	22	22 15	21	21	20	37	37	46
ZL-KM110-T282222	28x22x22	28	22 22	23	21	21	42	41	42.5
ZL-KM110-T282822	28x28x22	28	28 22	23	23	21	42	42	46
ZL-KM110-T281522	28x15x22	28	15 22	23	20	21	42	40.5	42
ZL-KM110-T282815	28x28x15	28	28 15	23	23	20	42	42	50
ZL-KM110-T352222	35x22x22	35	22 22	26	21	21	45	42	47
ZL-KM110-T353522	35x35x22	35	35 22	26	26	21	50	50	55
ZL-KM110-T353528	35x35x28	35	35 28	26	26	23	50	48.5	55
ZL-KM110-T423535	42x35x35	42	35 35	30	26	26	55	54	57

Description

CODE	SIZE	D1	D2 D3	L1	L2	L3	A	B	C
ZL-KM110-T221515	22x15x15	22	15 15	21	20	20	37	38	46
ZL-KM110-T222215	22x22x15	22	22 15	21	21	20	37	37	46
ZL-KM110-T282222	28x22x22	28	22 22	23	21	21	42	41	42.5
ZL-KM110-T282822	28x28x22	28	28 22	23	23	21	42	42	46
ZL-KM110-T281522	28x15x22	28	15 22	23	20	21	42	40.5	42
ZL-KM110-T282815	28x28x15	28	28 15	23	23	20	42	42	50
ZL-KM110-T352222	35x22x22	35	22 22	26	21	21	45	42	47
ZL-KM110-T353522	35x35x22	35	35 22	26	26	21	50	50	55
ZL-KM110-T353528	35x35x28	35	35 28	26	26	23	50	48.5	55
ZL-KM110-T423535	42x35x35	42	35 35	30	26	26	55	54	57

Setup Video

Attachments

File	Description	File size
M ProfileCooper Press FittingFor Water and Gas		2 MB
