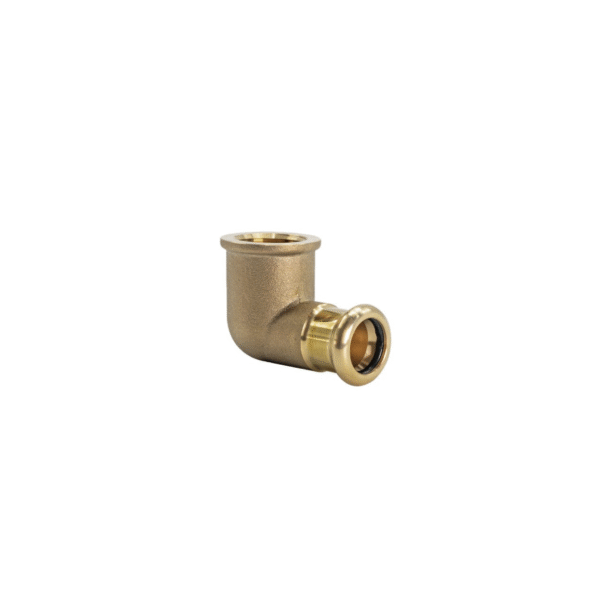

Female 90° Elbow

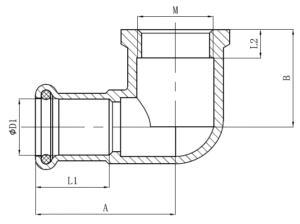

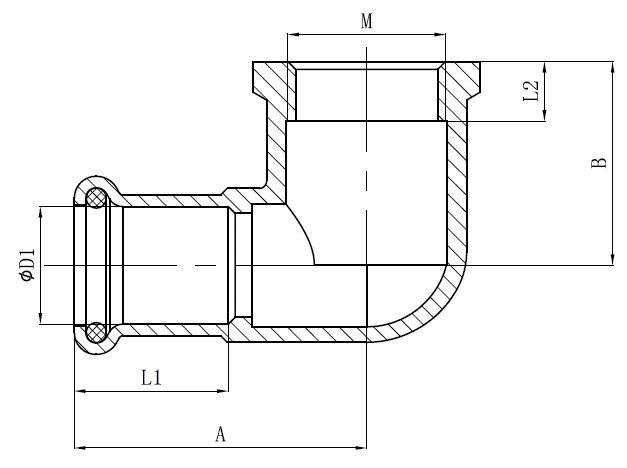

CODE	SIZE	D1	L1	L2	A	B	M
ZL-KM114-L1512F	15×1/2F	15	20	15	38	26.5	Rp1/2
ZL-KM114-L2234F	22×3/4F	22	21	12.2	42	24	Rp3/4
ZL-KM114-L2811F	28x1F	28	21	13.9	48	31	Rp1

Description

CODE	SIZE	D1	L1	L2	A	B	M
ZL-KM114-L1512F	15×1/2F	15	20	15	38	26.5	Rp1/2
ZL-KM114-L2234F	22×3/4F	22	21	12.2	42	24	Rp3/4
ZL-KM114-L2811F	28x1F	28	21	13.9	48	31	Rp1

Setup Video

Attachments

File	Description	File size
M ProfileCooper Press FittingFor Water and Gas		2 MB
