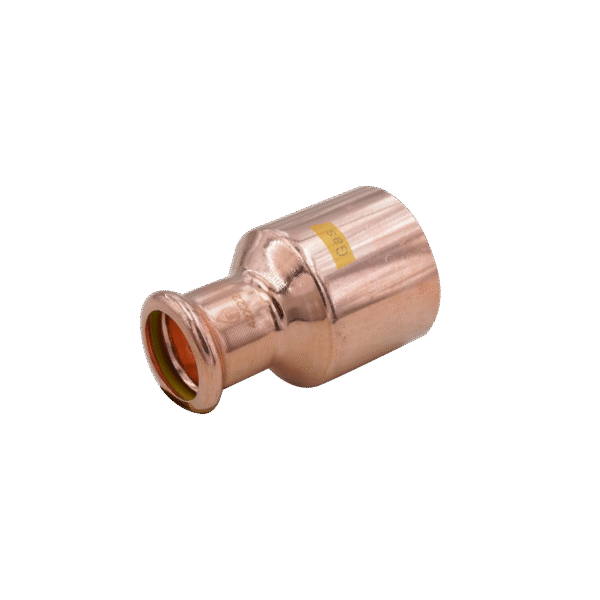

Street Reducer

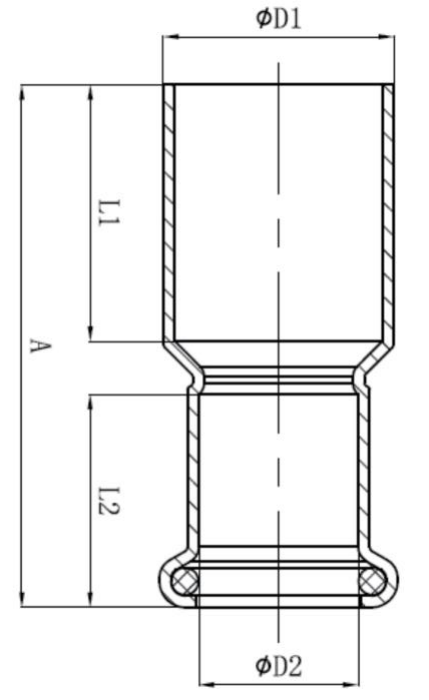

CODE	SIZE	D1	D2	L1	L2	A
GKM108-S2215	22x15mm	22	15	24	20	50
GKM108-S2815	28x15mm	28	15	27	20	55
GKM108-S2822	28x22mm	28	22	27	21	53
GKM108-S3522	35x22mm	35	22	30	21	60
GKM108-S3528	35x28mm	35	28	30	23	59
GKM108-S4222	42x22mm	42	22	34	21	67
GKM108-S4228	42x28mm	42	28	34	23	67
GKM108-S4235	42x35mm	42	35	34	26	66
GKM108-S5422	54x22mm	54	22	39	21	81
GKM108-S5428	54x28mm	54	28	39	23	80
GKM108-S5435	54x35mm	54	35	39	26	79
GKM108-L5442	54x42mm	54	42	39	30	78

Description

CODE	SIZE	D1	D2	L1	L2	A
GKM108-S2215	22x15mm	22	15	24	20	50
GKM108-S2815	28x15mm	28	15	27	20	55
GKM108-S2822	28x22mm	28	22	27	21	53
GKM108-S3522	35x22mm	35	22	30	21	60
GKM108-S3528	35x28mm	35	28	30	23	59
GKM108-S4222	42x22mm	42	22	34	21	67
GKM108-S4228	42x28mm	42	28	34	23	67
GKM108-S4235	42x35mm	42	35	34	26	66
GKM108-S5422	54x22mm	54	22	39	21	81
GKM108-S5428	54x28mm	54	28	39	23	80
GKM108-S5435	54x35mm	54	35	39	26	79
GKM108-L5442	54x42mm	54	42	39	30	78

Setup Video

Attachments

File	Description	File size
M Profile Copper press Fitting For water and Gas		2 MB
