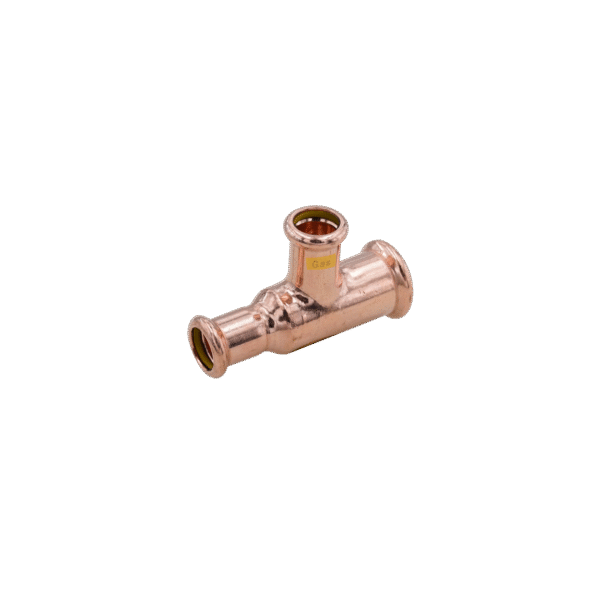

Tee Reduced Branch-1

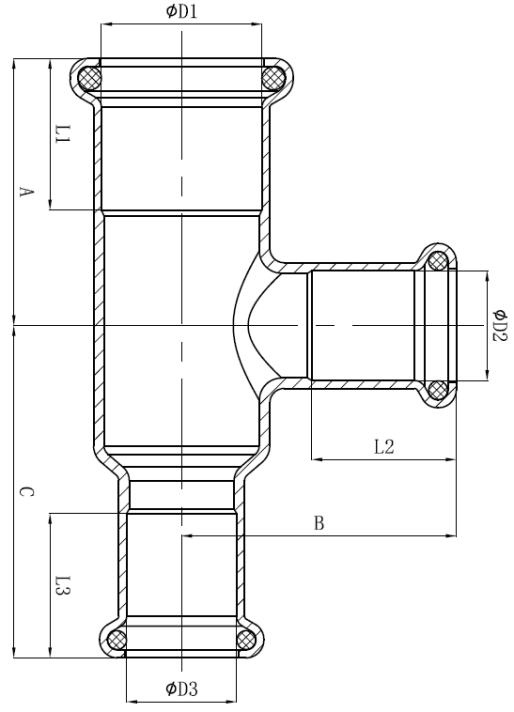

CODE	SIZE	D1 D2 D3	L1	L2	L3	A	B C
ZL-KMG110-T221515	22x15x15	22 15 15	21	20	20	37	38 46
ZL-KMG110-T222215	22x22x15	22 22 15	21	21	20	37	37 46
ZL-KMG110-T282222	28x22x22	28 22 22	23	21	21	42	41 42.5
ZL-KMG110-T282822	28x28x22	28 28 22	23	23	21	42	42 46
ZL-KMG110-T281522	28x15x22	28 15 22	23	20	21	42	40.5 42
ZL-KMG110-T282815	28x28x15	28 28 15	23	23	20	42	42 50
ZL-KMG110-T352222	35x22x22	35 22 22	26	21	21	45	42 47
ZL-KMG110-T353522	35x35x22	35 35 22	26	26	21	50	50 55
ZL-KMG110-T353528	35x35x28	35 35 28	26	26	23	50	48.5 55
ZL-KMG110-T423535	42x35x35	42 35 35	30	26	26	55	54 57

Description

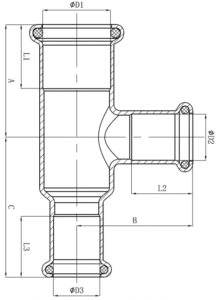

CODE	SIZE	D1 D2 D3	L1	L2	L3	A	B C
GKM110-T221515	22x15x15	22 15 15	21	20	20	37	38 46
GKM110-T222215	22x22x15	22 22 15	21	21	20	37	37 46
GKM110-T282222	28x22x22	28 22 22	23	21	21	42	41 42.5
GKM110-T282822	28x28x22	28 28 22	23	23	21	42	42 46
GKM110-T281522	28x15x22	28 15 22	23	20	21	42	40.5 42
GKM110-T282815	28x28x15	28 28 15	23	23	20	42	42 50
GKM110-T352222	35x22x22	35 22 22	26	21	21	45	42 47
GKM110-T353522	35x35x22	35 35 22	26	26	21	50	50 55
GKM110-T353528	35x35x28	35 35 28	26	26	23	50	48.5 55
GKM110-T423535	42x35x35	42 35 35	30	26	26	55	54 57

Setup Video

Attachments

File	Description	File size
M ProfileCooper Press FittingFor Water and Gas		2 MB
