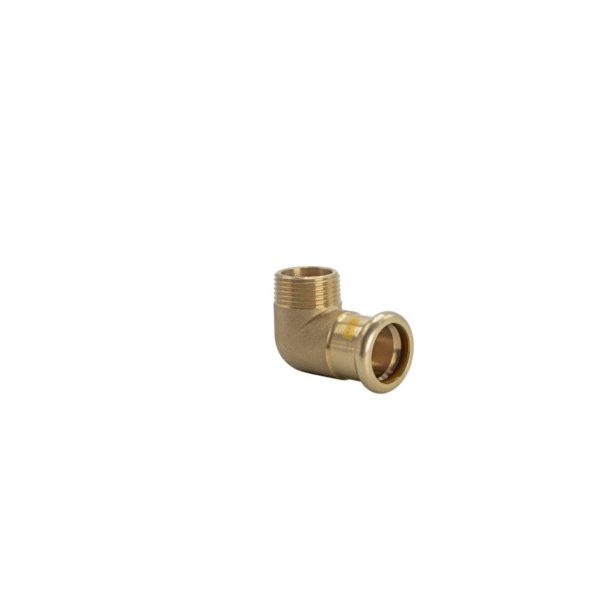

Male Elbow

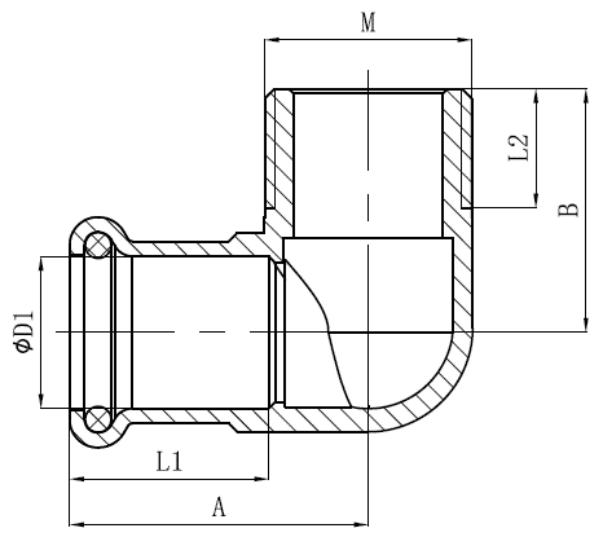

CODE	SIZE	D1	L1	L2	A	B	M
GKM115-L1512M	15×1/2	15	20	11.4	30	24.5	R1/2
GKM115-L2234M	22×3/4	22	21	13	42	27	R3/4
GKM115-L2811M	28×1	28	23	17	42	36	R1

Description

CODE	SIZE	D1	L1	L2	A	B	M
GKM115-L1512M	15×1/2	15	20	11.4	30	24.5	R1/2
GKM115-L2234M	22×3/4	22	21	13	42	27	R3/4
GKM115-L2811M	28×1	28	23	17	42	36	R1

Attachments

File	Description	File size
M Profile Copper press Fitting For water and Gas		2 MB
